KEY FEATURES
- High-performance 3000-Watt powered subwoofer for PA applications
- World-famous, British engineered 15" Turbosound speaker
- Extremely high sound pressure level and incredibly accurate bass
- Precise reproduction of ultra-low frequencies for "bulletproof" punch and impact
- State-of-the-art 3000-Watt Class-D amplifier with comprehensive over-excursion, thermal, RMS and clip limit protection
- Built-in active stereo crossover provides high-pass filtered outputs for full-range loudspeakers
- Tunable and switchable Bass Boost plus Phase switch for ultimate low-frequency performance
- Variable High Cut control for perfect sound alignment
- Subwoofer Level control to adjust the balance between subwoofer and the full-range speakers
- Power, Signal and Clip LEDs for perfect monitoring
- Intelligent limiter for maximum sound performance and woofer protection
- Internal switch-mode power supply for noise-free audio, superior transient response and very low power consumption
- Pole socket for mounting with commercial spacer poles
- Ergonomically shaped handles for easy transport
- Rugged steel grill for optimal speaker protection
DESCRIPTION

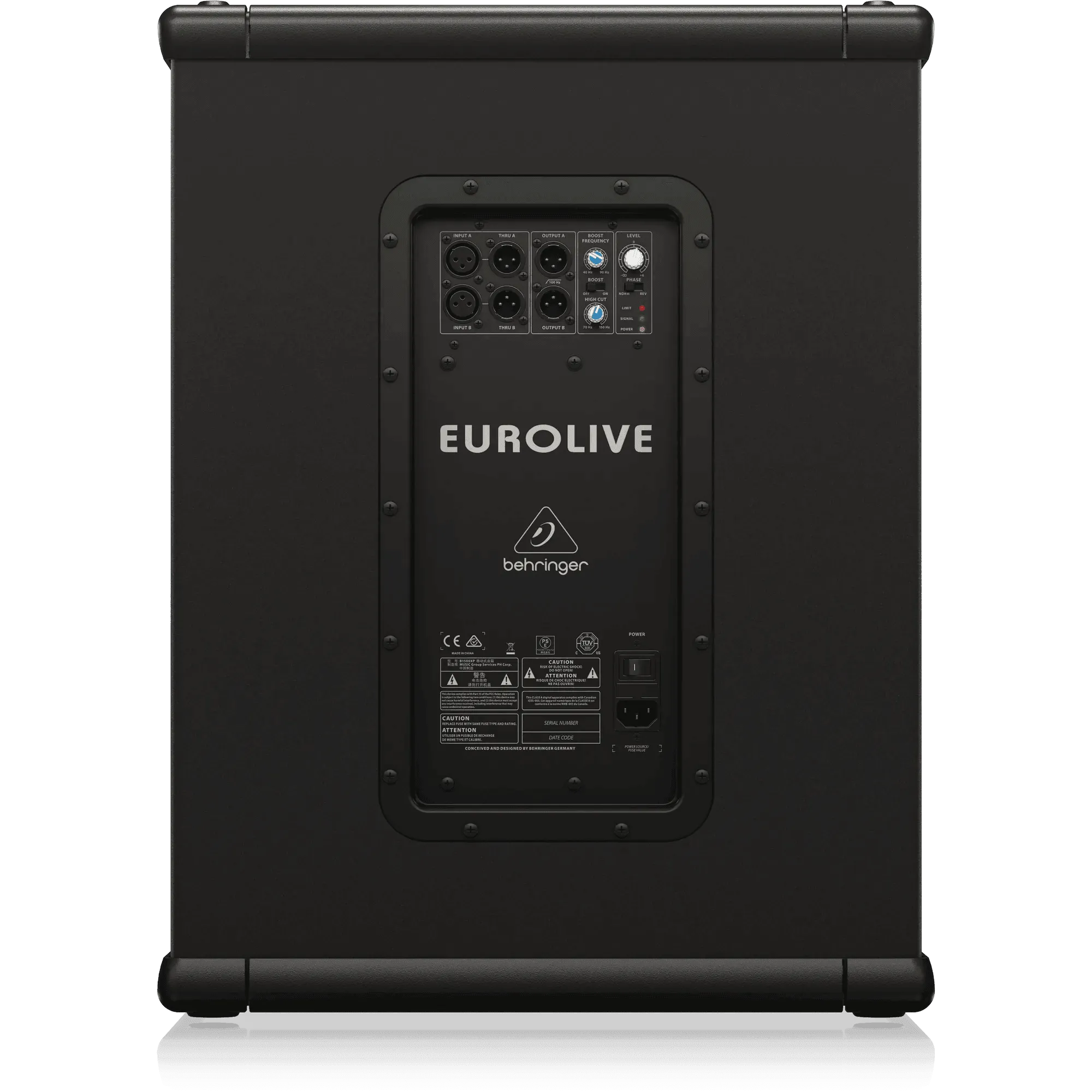

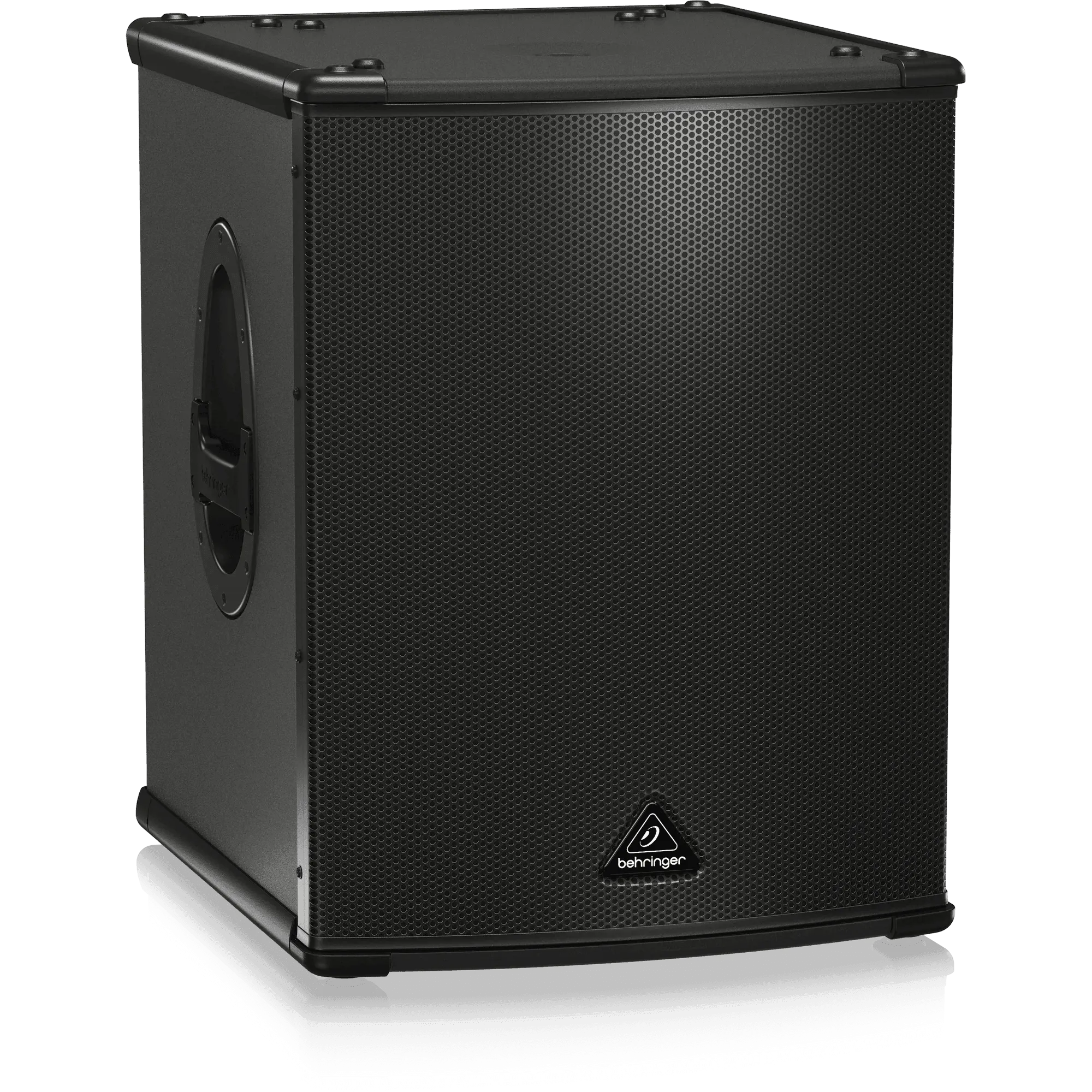

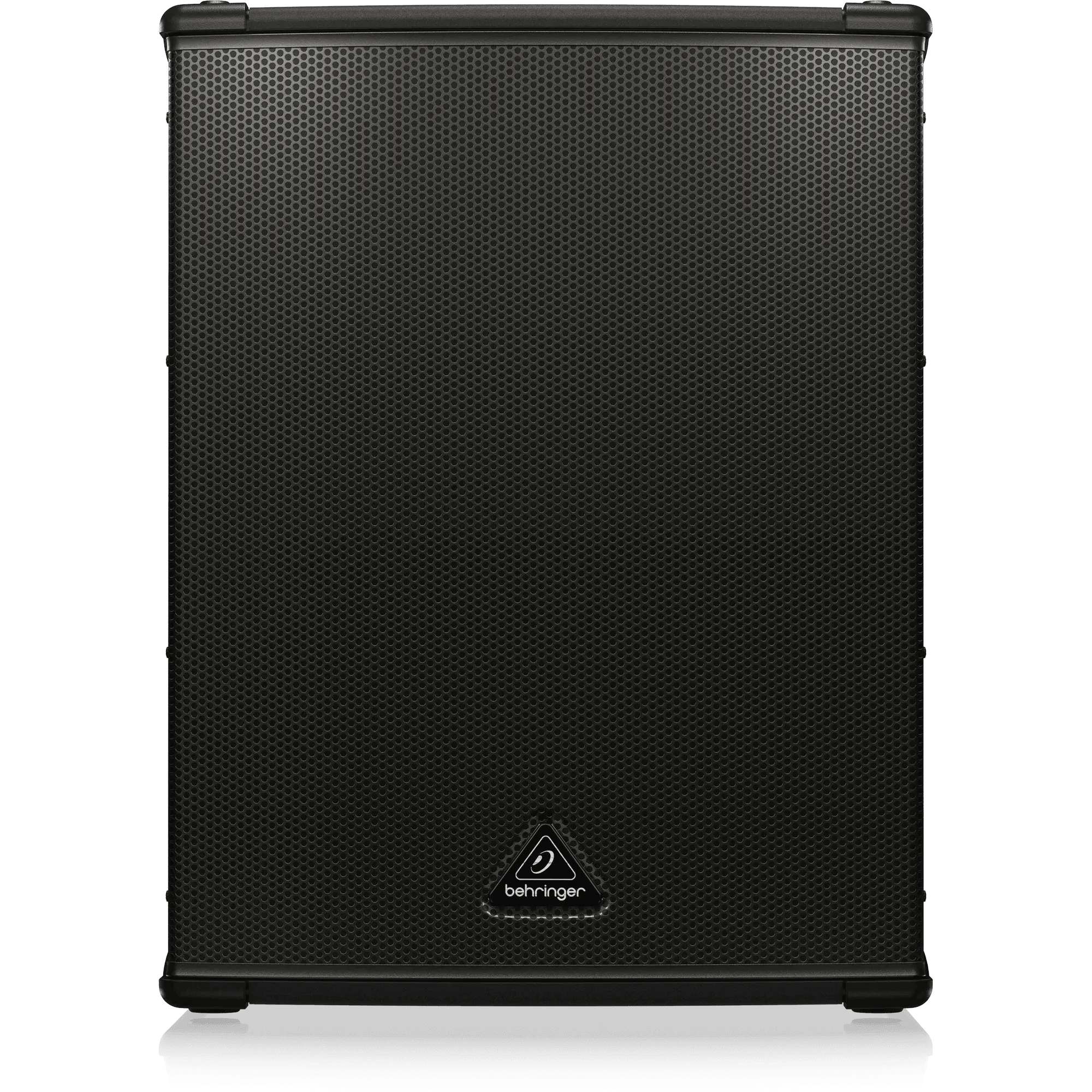

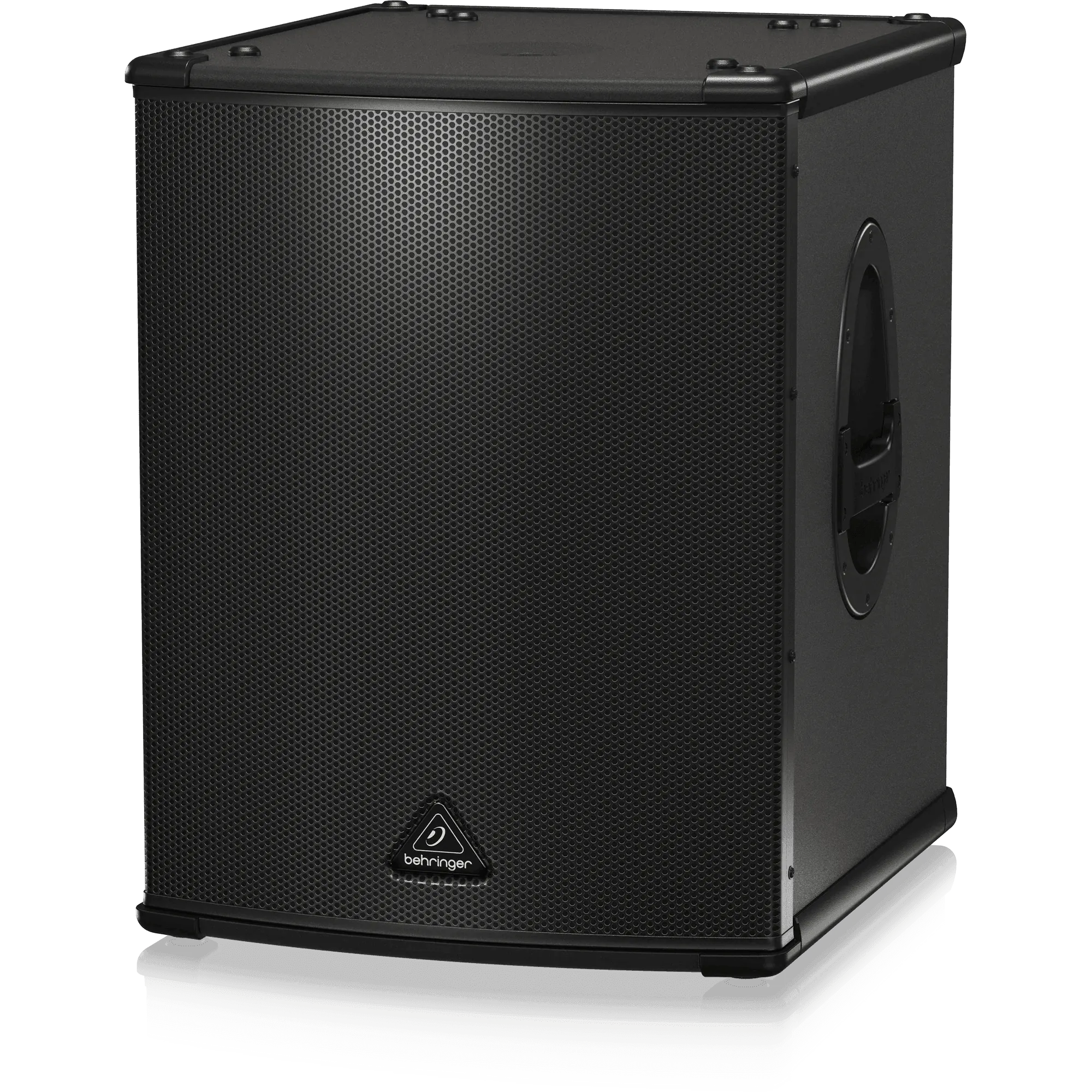

Our Eurolive B1500XP 3000-Watt active subwoofer provides the ultimate in low-frequency reproduction, and the built-in stereo crossover makes it ideally suited for use with any of our active 2-way loudspeakers. Loaded with an all-new 3000-Watt Class-D amplifier, Turbosound 15" long-excursion Low-Frequency (LF) transducer and an incredible array of professional features, the B1500XP produces extreme levels of low-end punch, with the definition and clarity typically reserved for much larger systems. Packaged in a completely redesigned and lightweight enclosure, the B1500XP is our most robust and articulate subwoofer design ever!
Put simply, these cool-running systems are significantly lighter than their predecessors, making them ultra-easy to transport and set up – and our no-compromise design means you get amazingly-deep, chest-pounding bass that will keep the party going all night long.
SPECIFICATIONS
Amplifier
Maximum output power: 3000 W *
Type: Class-D
Audio Inputs
Input A / B: XLR, servo-balanced
Sensitivity: 4 dBu @ 0 dB
(center position) for full rated power
Max input: 22 dBu, balanced, <=1 % THD N
Input impedance: 12 kΩ unbalanced, 24 kΩ balanced
Audio Outputs
Thru A / B: XLR, servo-balanced
Output A / B: XLR, servo-balanced
High-pass filter: 100 Hz, Butterworth, 18 dB slope
Controls
Level: -∞ to 6.0 dB
Boost frequency: 40 Hz – 90 Hz, 10 dB
Boost: Switchable
High cut: 0 – 150 Hz, Butterworth, 24 dB slope
Phase: 0° or 180° phase reverse switch
System Data
Frequency range: 32 Hz – 200 Hz (-10 dB)
Frequency response: 45 Hz – 150 Hz ( /-3 dB)
Signal-to-noise (20 Hz to 20 kHz): >100 dB (A-weighted)
Sound pressure level (half space): max. 128 dB @ 1 m
Woofer: 15"
Limiter: Optical
Indicators
Signal LED: Green
Limit LED: Red
Power LED: Amber
Circuit Protection
Amplifier protection: Full short circuit, thermal protection
Load Protection: Turn-on/off muting
Power Supply, Voltage (Fuses)
USA / Canada / Japan: 00-120 V~, 50/60 Hz (T 15 A H 250 V)
UK / Australia / Europe / Korea / China: 220-240 V~, 50/60 Hz (T 10 A H 250 V)
Power consumption @ 1/8 rated power: 180 W
Mains connection: Standard IEC receptacle
Dimensions / Weight
Dimensions (H x W x D): 608 x 467 x 532 mm (23.9 x 18.4 x 20.9")
Weight: 34.4 kg (75.7 lbs) Product width: 54 mm / 2.13 in
